A load bank is used in various industries, including electric vehicle (EV) charging stations (charging piles), to simulate the demand that will be placed on the system during real-world use. It’s typically applied to a charging pile in order to test its performance, stability, and capacity under controlled conditions.
Here’s how a load bank is applied to an EV charging pile:
-
Simulate Real-World Load Conditions: A load bank can simulate the electrical load that the charging pile will experience when multiple vehicles are charging simultaneously or when a vehicle requires a high charge rate. This helps to test the ability of the charging station to handle different levels of demand and ensure that it can deliver consistent and reliable performance.
- Testing the Charging Station’s Capacity: The load bank can be set to specific values, such as the maximum output of the charging pile (e.g., 50 kW, 100 kW). By adjusting the load, the operator can verify if the charging pile is capable of providing the required power without overheating, tripping, or malfunctioning.
- Cooling and Heat Management: Charging piles, especially high-power ones, generate significant heat during operation. Load banks help test the cooling systems of the charging pile by imposing a sustained load and verifying whether the cooling mechanisms (like fans or liquid cooling) are effective in keeping the temperature within safe operating ranges.
- Voltage and Current Testing: Load banks can be used to simulate various scenarios where the charging pile needs to provide a steady and accurate voltage and current. This helps assess whether the charging pile’s voltage regulation and current stability are within required specifications.
- Maintenance and Troubleshooting: If there’s an issue with the charging pile, the load bank can be used to isolate the problem. By applying a known load and monitoring the charging pile’s response, technicians can determine if the issue is with the pile's power electronics, cooling systems, or other components.
- Safety and Compliance Testing: Load banks also help ensure that the charging pile complies with local electrical safety standards, such as overcurrent protection, surge protection, and grounding. Testing with a load bank can identify any vulnerabilities in the system that could pose safety risks to users.

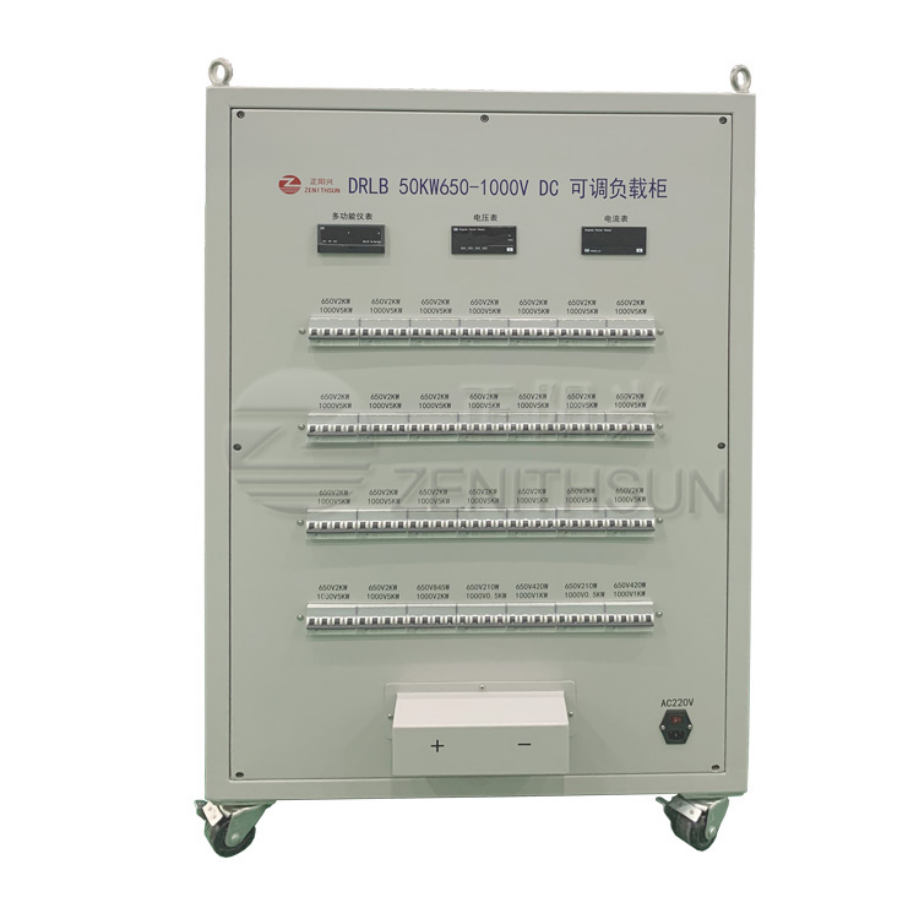

Load bank
Steps to Apply a Load Bank to a Charging Pile:
- Connect the Load Bank to the Charging Pile: The load bank will be connected to the output of the charging pile, typically where the DC or AC current is delivered to the vehicle.
- Set the Desired Load: Using the load bank’s control system, set the specific load conditions for testing. This could range from light loads (simulating low power draw) to full loads (simulating maximum charging capacity).
- Monitor Performance: As the load bank applies the demand, the charging pile’s performance is monitored through parameters like voltage, current, temperature, and efficiency.
- Analyze Results: After the test, the data is analyzed to determine if the charging pile can handle the load without issues such as voltage fluctuations, overheating, or tripping.

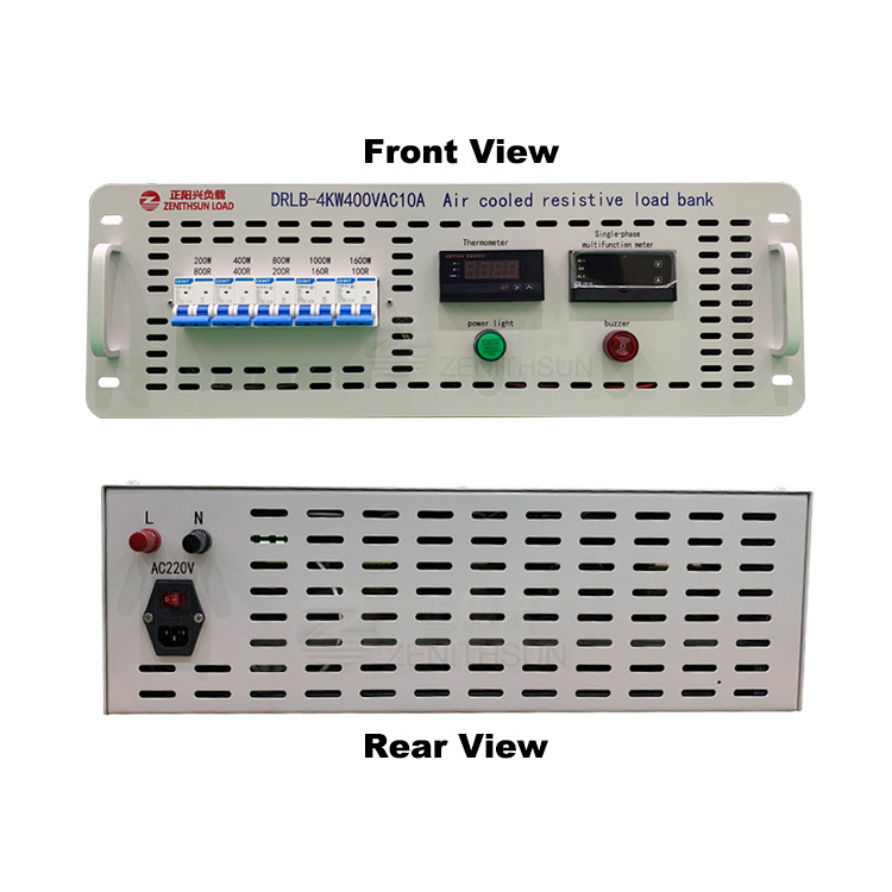

Load bank
In summary, the load bank is a critical tool for testing and ensuring the reliability, capacity, and safety of an EV charging station by simulating real-world electrical demand under various operating conditions.
