Golden Shell Resistors, often referred to as golden aluminum shell resistors, are high-power resistors encased in anodized aluminum housings. Their distinctive gold-colored shell not only provides aesthetic appeal but also offers excellent thermal management, durability, and reliability. These resistors are widely used in applications that demand high power dissipation, stability, and robust mechanical performance.

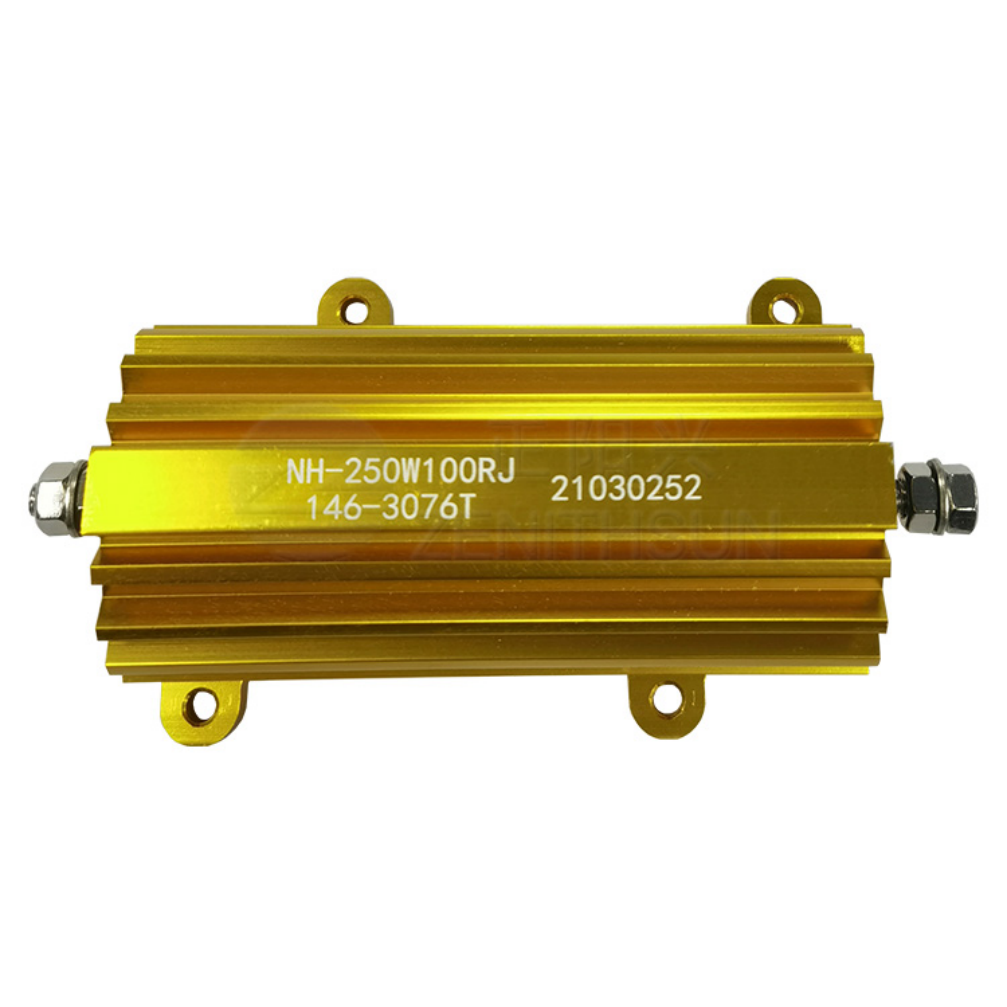

Golden shell resistor
1. Structure and Features
Golden shell resistors are designed with the following structural elements and characteristics:
- Aluminum Housing: The anodized aluminum shell, usually gold in color, enhances heat dissipation and protects the internal components from mechanical damage and corrosion.
- Wire-Wound Core: The resistor element is typically wire-wound using a high-resistance alloy such as nichrome, ensuring precise resistance values and high stability.
- Insulating Material: The interior is filled with heat-resistant insulating materials like silicone or ceramic, providing electrical insulation and supporting heat dissipation.
- Mounting Design: These resistors often include mounting holes, enabling easy attachment to heat sinks or chassis for enhanced thermal performance.
2. Key Specifications
Golden shell resistors are available in a wide range of specifications. Common parameters include:
- Power Rating: Ranges from 10W to over 500W, depending on the model.
- Resistance Range: Typically available from 0.01Ω to several kilohms (e.g., 0.01Ω–50kΩ).
- Tolerance: Standard tolerances are ±1%, ±5%, or ±10%.
- Insulation Resistance: Often exceeds 1,000MΩ at standard test voltages.
- Dielectric Strength: Withstands up to 2,000–5,000V AC between the resistor element and the shell.
- Temperature Coefficient: Typically ±50ppm/°C to ±200ppm/°C, depending on material and design.
- Operating Temperature Range: Commonly -55°C to +275°C.
3. Advantages
Golden shell resistors offer several benefits:
- High Power Handling: Capable of dissipating large amounts of heat, making them suitable for high-current or high-power applications.
- Effective Thermal Management: Aluminum casing ensures efficient heat dissipation, especially when mounted on a heat sink.
- Durability: Resistant to mechanical shocks, vibrations, and environmental stress.
- Compact Design: High power density allows for compact installation without compromising performance.
- Customizable Options: Available in a wide variety of resistance values, power ratings, and configurations.

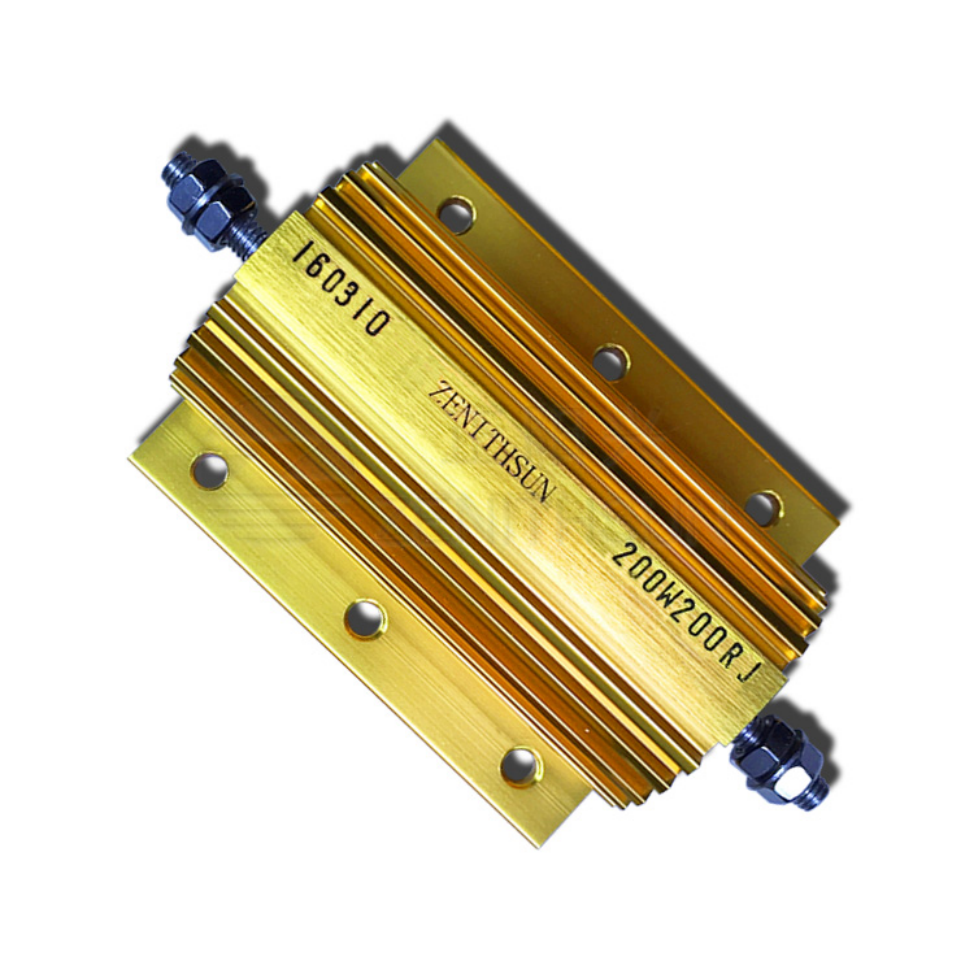

Golden shell resistor
4. Common Applications
Golden shell resistors are versatile and used in various industries:
- Motor Control and Drives:
- Employed as dynamic braking resistors to dissipate regenerative energy in motors and drives.
- Power Supplies:
- Used as load resistors in testing or as current-limiting resistors in power circuits.
- Renewable Energy:
- Integral in energy dissipation circuits for wind turbines or solar inverters.
- Industrial Automation:
- Found in servo drives, robotics, and industrial controllers.
- Load Testing:
- Serves as a dummy load for testing power systems, generators, and batteries.
- Railway and Automotive:
- Utilized in braking systems for trains and electric vehicles.
- Audio Equipment:
- Acts as a load for amplifiers in audio testing scenarios.
5. Installation and Usage Tips
To ensure optimal performance, consider the following:
- Heat Management:
- Always mount the resistor on a heat sink or a thermally conductive surface using thermal paste or a similar compound to improve heat transfer.
- If working in high-power scenarios, additional cooling (e.g., fans) may be required.
- Proper Sizing:
- Select a resistor with a power rating at least 1.5–2 times the expected load power to ensure reliability and longevity.
- Secure Connections:
- Use reliable terminals or connectors to prevent overheating at connection points.
- Environment:
- Avoid exposure to moisture, dust, or corrosive environments unless the resistor is specifically rated for such conditions.
6. Maintenance and Troubleshooting
- Regular Inspections: Check for signs of overheating, discoloration, or physical damage.
- Measure Resistance: Periodically test the resistor’s resistance value to detect any drift or failure.
- Clean Contacts: Ensure the terminals are clean and secure to maintain good electrical connection.
- Replace Damaged Units: If a resistor shows signs of thermal stress or electrical failure, replace it promptly to avoid further circuit issues.

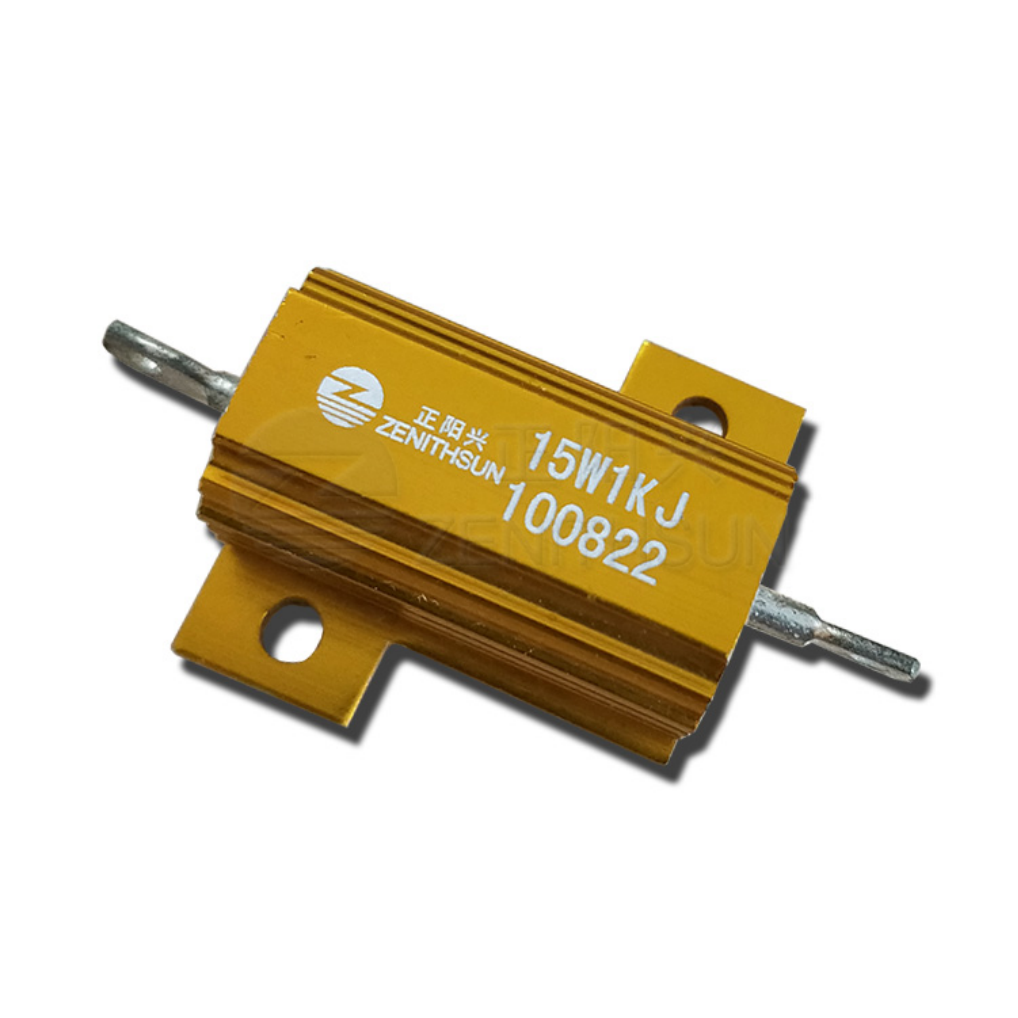

Golden shell resistor
7. Examples and Models
Golden shell resistors are offered by various manufacturers, and their naming often indicates the power rating and type. Common models include:
- RX24 series: Available in 10W, 50W, 100W, 200W, 300W, and higher power ratings.
- RH series: Similar in performance but may vary in casing size or resistance range.
Golden shell resistors are a reliable choice for high-power, high-stability applications in industrial, automotive, and testing environments. Their excellent thermal management, robust construction, and versatile design make them indispensable in modern electrical and electronic systems. Proper selection, installation, and maintenance will maximize their effectiveness and ensure long-term performance.
