What is the Function of Cement Resistor and How Does It Work?

Cement resistors, a type of power resistor, are widely used in electrical circuits where high energy dissipation is required. These resistors are often employed in power supplies, industrial machinery, and electronic equipment where both durability and heat tolerance are critical. In this article, we will explore the function of cement resistors and explain how they work.

What is a Cement Resistor?

A cement resistor is a type of fixed resistor that is typically encased in a ceramic tube filled with a cement-like material. This material is a mixture of ceramic powder and a binder, which provides the resistor with its distinctive appearance and gives it the ability to withstand higher temperatures than many other types of resistors.

The resistor’s core element is typically made from a metal wire (often nichrome or a similar material), which is wound around a ceramic core. The ceramic casing and the cement material around the wire act as a heat sink, dissipating the heat generated by the resistor during operation. The resistor’s value (in ohms) is determined by the material properties of the wire, its length, and the winding’s configuration.

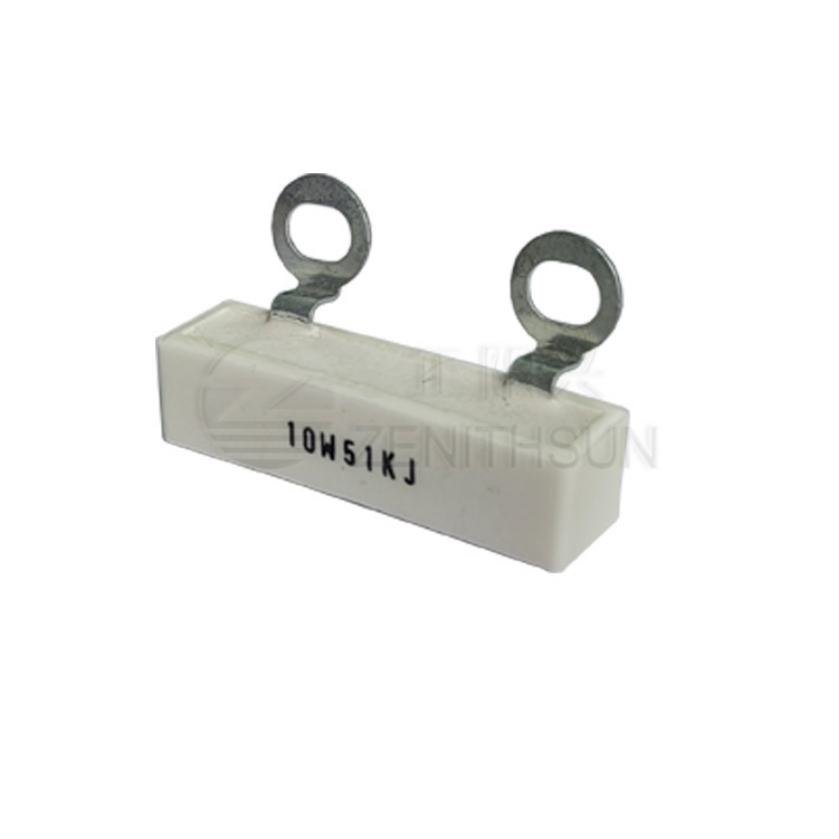

Cement resistor

Function of Cement Resistor

1. Energy Dissipation: Cement resistors are primarily used to convert electrical energy into heat. This conversion allows them to regulate the flow of current in a circuit by providing resistance, thereby protecting sensitive components from excess current. In high-power applications, such as industrial equipment, power supplies, and audio amplifiers, cement resistors are preferred for their ability to handle large amounts of power without failure.
2. Heat Management: The key feature of cement resistors is their ability to dissipate heat effectively. The cement material surrounding the resistor wire acts as a thermal insulator, enabling the resistor to manage the heat generated during operation. This makes them suitable for high-power applications where other types of resistors (e.g., carbon film or metal oxide resistors) would overheat and potentially fail.
3. Voltage Regulation: Cement resistors help regulate voltage by limiting the current that can flow through a circuit. When a current passes through a cement resistor, the resistor resists the flow, creating a voltage drop across its terminals. This voltage drop can be used to control or limit the voltage applied to other components in the circuit.
4. Current Limiting: In many power supply designs, cement resistors are used for current-limiting purposes. For instance, they may be placed in series with an electrical load to ensure that the current flowing through the load does not exceed a safe threshold, protecting the load and other components from damage due to excessive current.

How Does a Cement Resistor Work?

A cement resistor works based on the principles of Ohm’s Law, which states that the voltage across a resistor is directly proportional to the current flowing through it and the resistance of the material. The formula is:

$V=I\times RV\; =\; I\; \backslash times\; R$

V=I×R

Where:

•
  $VV$

  V is the voltage across the resistor

•
  $II$

  I is the current flowing through the resistor

•
  $RR$

  R is the resistance of the resistor

When current flows through a cement resistor, the resistor creates a resistance to the current, causing a voltage drop and dissipating electrical energy in the form of heat. The amount of heat generated is proportional to the square of the current and the resistance:

$P=I2\times RP\; =\; I^2\; \backslash times\; R$

P=I2×R

Where:

•
  $PP$

  P is the power dissipated as heat (in watts)

•
  $II$

  I is the current

•
  $RR$

  R is the resistance

The ceramic casing and cement material provide a robust heat dissipation path, preventing the resistor from overheating and maintaining its integrity even under demanding conditions.

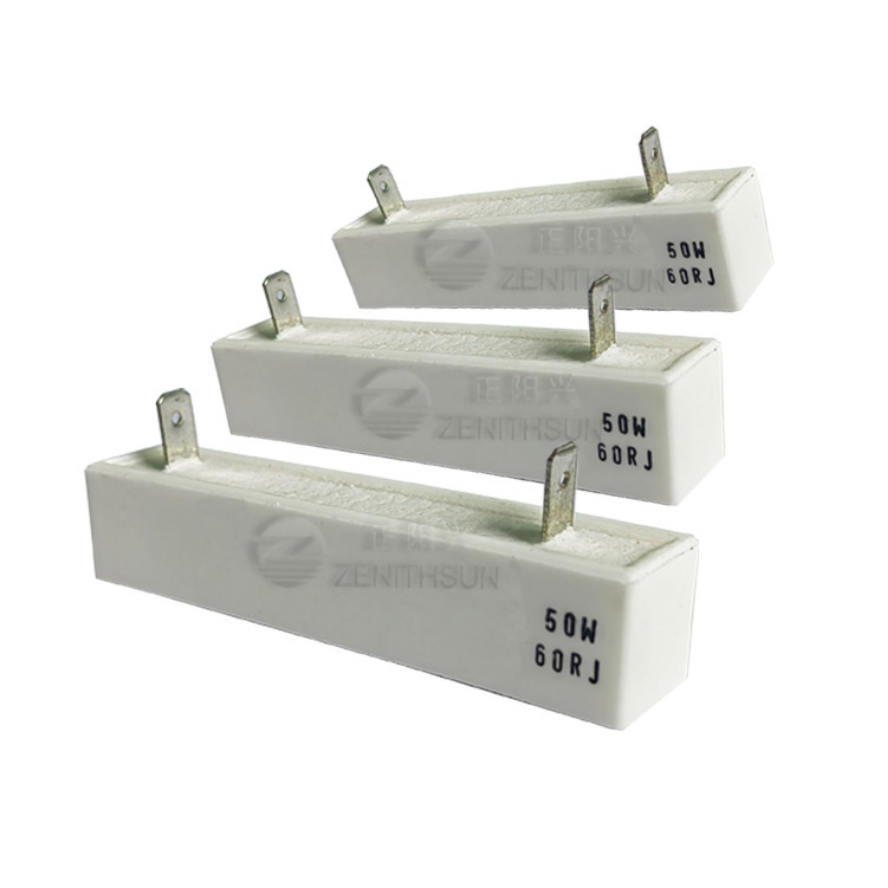

Cement resistor

Advantages of Cement Resistors

1. High Power Rating: Cement resistors are designed to handle high wattages (up to several hundred watts), making them ideal for power applications where other resistors might fail.
2. Durability: The ceramic casing and cement material provide strong mechanical protection, making cement resistors resistant to physical damage, moisture, and environmental factors.
3. Excellent Heat Dissipation: The heat-resistant properties of the cement and ceramic material help the resistor to efficiently dissipate the heat generated during operation, preventing thermal overload.
4. Cost-Effective: Cement resistors are relatively inexpensive compared to other high-power resistors, making them an attractive choice for many industrial and power applications.

Applications of Cement Resistors

• Power Supplies: Cement resistors are commonly used in power supplies to limit current, prevent overcurrent situations, and manage heat dissipation.
• Audio Amplifiers: They are often found in the power stage of audio amplifiers to regulate current and prevent circuit damage.
• Industrial Equipment: Cement resistors are used in various industrial machines, such as motors, inverters, and heating systems, where power handling and heat management are crucial.
• Lighting Systems: In some lighting circuits, cement resistors are used to control the current flow and manage power consumption.

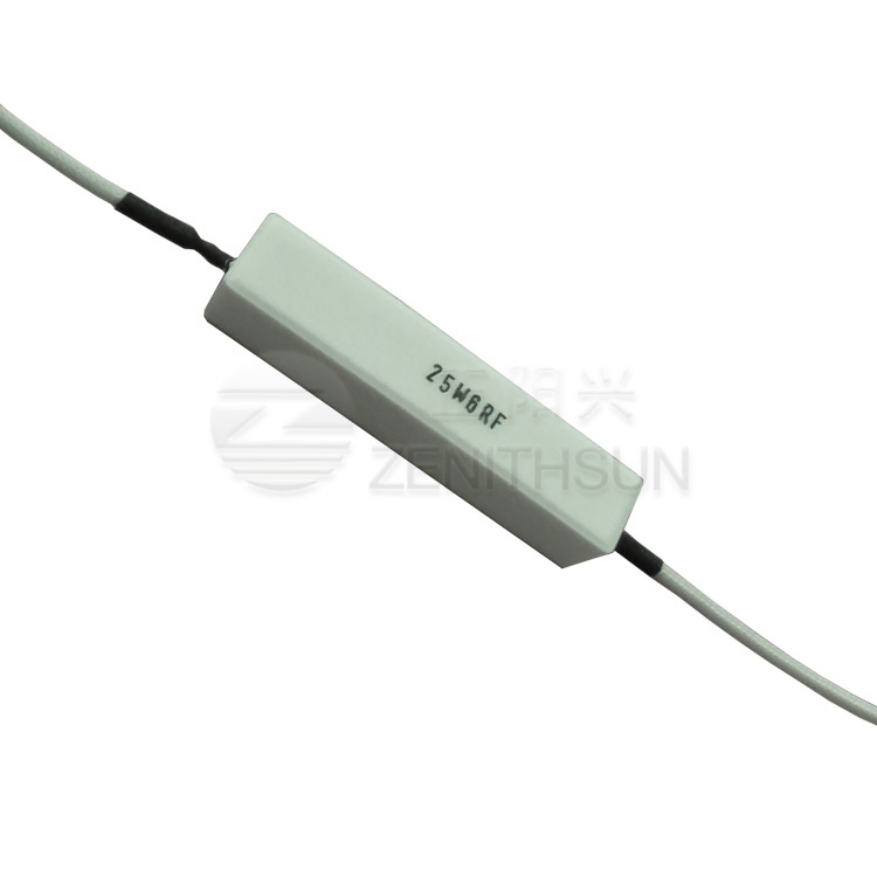

Cement resistor

Cement resistors serve a critical function in many electrical and electronic systems by providing a stable, high-power resistance while effectively managing heat dissipation. Their durable construction, ability to handle large amounts of power, and heat-resistant properties make them ideal for use in power supplies, audio amplifiers, industrial machines, and various other applications that require efficient energy management and protection of sensitive components. Understanding how they work and where they are used can help engineers and technicians select the right resistor for specific applications, ensuring both performance and longevity.
